Appleton LR68 Conduit Body 2 in. - New Surplus

Description:

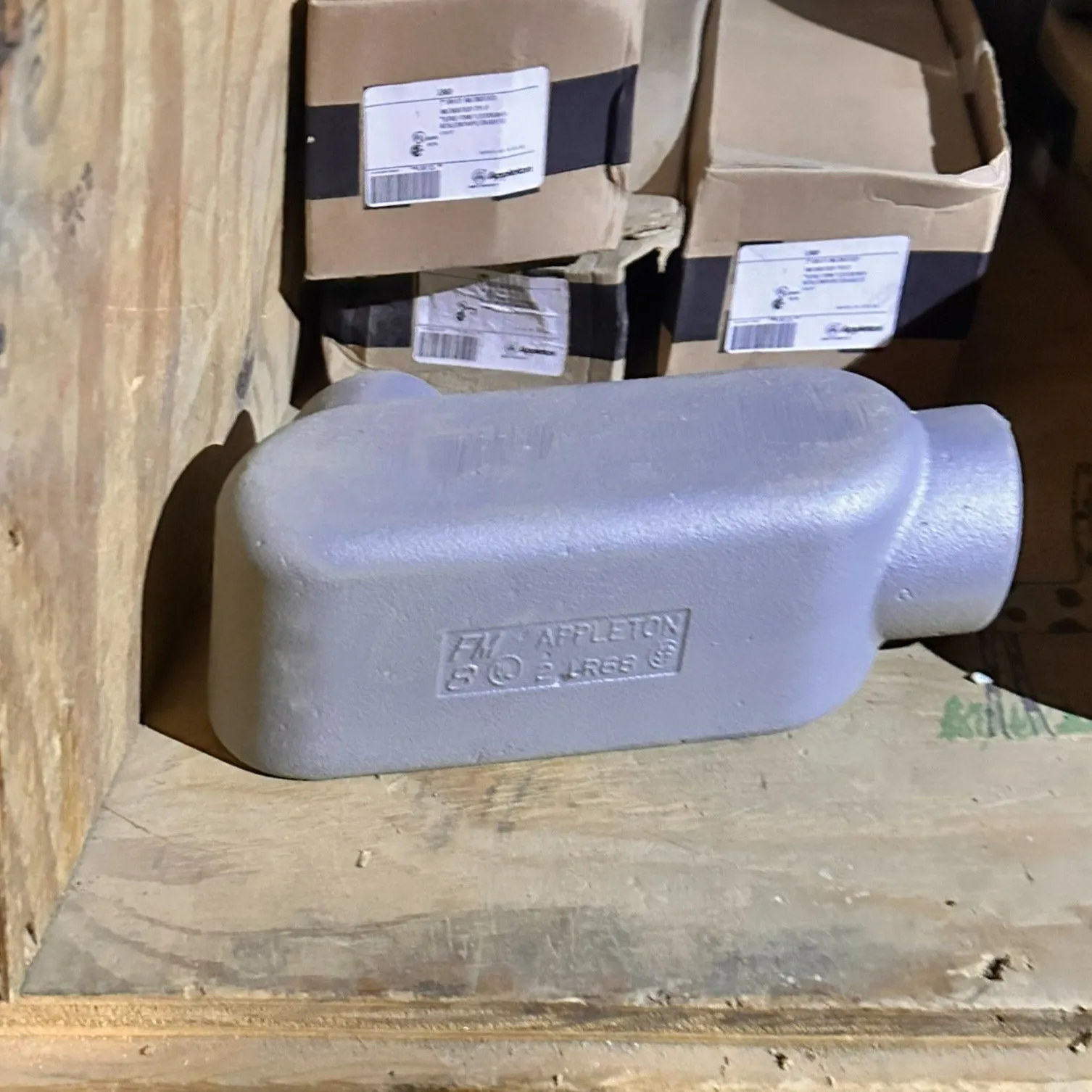

The Appleton LR68 2" Conduit Body is a heavy-duty, Form 8 conduit outlet body designed for use in commercial, industrial, and hazardous locations. Made from durable Grayloy Iron with a triple-coat finish consisting of zinc electroplating, chromate, and epoxy powder coating, this conduit body measures 11.13 inches in length and 5.13 inches in width. It features two 2-inch threaded hubs located at a 90-degree angle, with a right-side access opening for easy installation and maintenance. The LR68 is UL 514A/B and CSA C22.2 approved, and complies with NEC, CEC, and NEMA FB-1 standards. With a capacity of 105 cubic inches, this conduit body can accommodate up to (3) 4/0 AWG wires. It is equipped with stainless steel cover screws and a neoprene gasket for a secure and weather-tight seal, making it suitable for Class I Division 2 hazardous locations.
